FreeGlide In Line Powder Sampler

FreeGlide In Line Powder Sampler


Add to favourites

The FreeGlide is a patented in-line sampler that can take samples of powders as they fall under gravity down a pipe.

  • Ideal for pharmaceutical and food applications

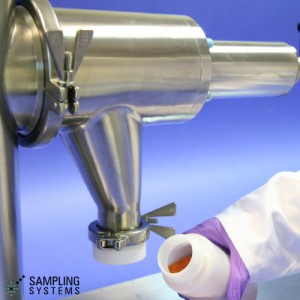

  • The sample is collected in a cup and so is not physically altered by the sampling process
  • The full bore of the pipe is available for powder flow in between taking samples
  • Over 1000 units have been supplied to customers all over the world



The FreeGlide has many features that make it ideal for use in hygienic GMP correct manufacturing areas.

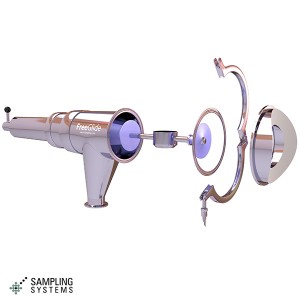

The powder is kept out of the bearings by use of a special flexible membrane - this means the sampler will not get stuck during use.

The product contact parts are made from FDA acceptable materials

The FreeGlide is easy to strip down for cleaning between batches.

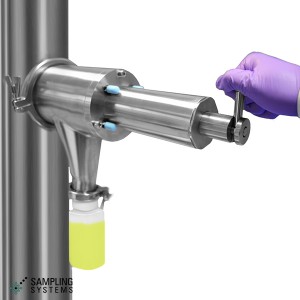

Manually Operated FreeGlide®
  • 50ml sample cup size
  • 316L stainless steel product contact parts
  • 304 stainless steel non-product contact parts
  • Silicone Diaphragm & End Plug (can be EPDM or Viton at no extra charge)
  • Front Boss for welding to customer’s pipe (welding & installation by others)
  • Internal finish 0.5µm Ra
  • External finish 1.0 µm Ra
  • Non ATEX
  • Maximum product temperature 60°C (140°F)

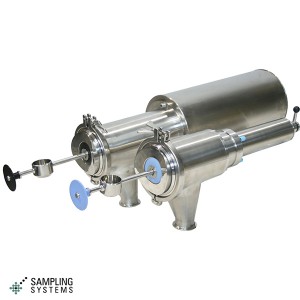

Pneumatic Actuated FreeGlide®
  • 50ml sample cup size
  • 316L stainless steel product contact parts
  • 304 stainless steel non-product contact parts
  • Silicone Diaphragm & End Plug (can be EPDM or Viton at no extra charge)
  • Front Boss for welding to customer’s pipe (welding & installation by others)
  • Internal finish 0.5µm Ra
  • External finish 1.0 µm Ra
  • Pneumatic Actuator requires air at 6barg
  • Four limit switches (24v DC) to detect cup position
  • Controls to be supplied by others
  • Non ATEX
  • Maximum product temperature 60°C (140°F)



Please Contact us for a full detailed quote and wide range of options



General Arrangement Sketches
Manual FreeGlides



General Arrangement Sketches
Pneumatic Actuated FreeGlides

FG-1000M FG-1000A
FG-1500M FG-1500A
FG-2000M FG-2000A
FG-3000M FG-3000A
Part No. Description Compare
FG-1000M Manual Operation - for use with Down Pipes larger than 100mm diameter Compare
FG-1500M Manual Operation - for use with Down Pipes larger than 150mm diameter Compare
FG-2000M Manual Operation - for use with Down Pipes larger than 200mm diameter Compare
FG-3000M Manual Operation - for use with Down Pipes larger than 230mm diameter Compare
FG-1000A Actuated Operation - for use with Down Pipes larger than 100mm diameter Compare
FG-1500A Actuated Operation - for use with Down Pipes larger than 150mm diameter Compare
FG-2000A Actuated Operation - for use with Down Pipes larger than 200mm diameter Compare
FG-3000A Actuated Operation - for use with Down Pipes larger than 230mm diameter Compare
